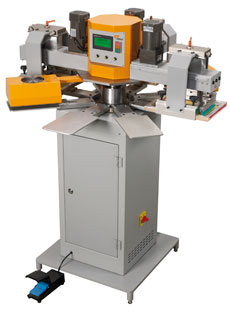

Nano-PrinTag
Automatic tagless label screen printer

Nano-PrinTex features

  •  1000 + prints per hour
  •  no pneumatics, no compressor
  •  up to 4 colours, 4 flash, 10 pallets
  •  single phase electricity

Applications

  •  tagless neck label
  •  caps
  •  socks
  •  high density labels & logos for shirts
  •  pocket/shoulder logo printing
  •  hand gloves, jeans pockets
  •  vests & undergarments
  •  transfers & high density labels
  •  all types of hosiery

Technical data

Nano-PrinTag
Print heads 1 2 3 4
Pallets* 8 8 8 10
Max. print area 152 x 152 mm
Max Frame size (OD) 297 x 381 mm
Profile thickness 25 mm
No. of flash 2 3 3 4
Power consumption with flash 1.8kW 3.3kW 5kW 6.6kW
Total machine height

146 cm

Machine diameter 141 cm
Total weight 290kg 320kg 350kg 380kg

*Pallet size available up to 25 x 30 cm
Special pallet available for screen printing socks, tie, hand gloves, handkerchiefs
and many other special applications.

read more...

DTG Mseries
dtg logo
download brochure


large format printing

Touch screen control panel

3 point screen registration system

Efficient flash curing unit
