Compress UV-600s

Compress iUV-600s Flatbed UV Printer

Cost-effective, on-demand colour printing on a wide range of substrates.

Compress UV LED technology is an entirely new small footprint flatbed UV printer that brings cost-effective, on-demand colour printing to the production floor for a multitude of substrates.

The Compress iUV-600s gives you the freedom to print exactly what you want onto virtually any substrate. All white Inks are pressurized and recirculated with filtering by our patent pending WIMS (white ink management system) for less downtime and ink issues in general…

Low maintainance. Production ready.

iUV-600s features

  •  600 x 450mm print area
  •  300 mm media height!
  •  Optional unwind/rewind for roll media
  •  WIMS white ink management on-board
  •  Print speeds up to 9m² per hour
  •  Dual LED variable watt low heat lamps
  •  Built in media height detection
  •  Ink mist extraction

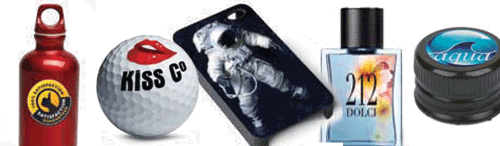

Print onto a wide range of substrates

Compress UV substrates

Technical data

Compress iUV-600s
Print head Epson DX5 Piezo with interweave technology
Colour CMYK, White and Varnish (optional)
Print area 600mm x 450mm • 300mm media height
Inks iUV LED pigmented UV-curable inks
Ink Delivery Bottle – pressurised CYMK Bottle
pressurised re-circulation
– white (WIMS) with filtration
UV
Technology
Dual UV LED lamps
Electrical AC 110-240V, 50-60Hz, 10A,
Consumption – 55W or less,
Standby – 5W, Off – 1W
Dimensions

width - 98cm
height - 55cm
length - 127cm

Weight 92 kg (boxed weight will vary)

read more...

Compress iUV-600s
Compress
download brochure


large format printing

300mm height auto adjust.

A2+ print area (large print field)
